Link Pin front disc brake conversion kit for Chevy and Porsche bolt pattern. This kit fits king pin Type 1 Beetles and Karmann Ghias from 1958-1965, and will fit Dune Buggies with king pin front ends. This will not fit any Ball Joint cars or Super Beetles. Not sure if your vehicle has a king pin front beam? Message us and we'll help you identify!
This link pin front disc brake kit features a double drilled rotor that can accommodate 5x130 Porsche wheels and 5 x 4.75 Chevy wheels.
Bolt holes for the Porsche bolt pattern are tapped for 14 mm lug bolts, while the Chevy bolt pattern is tapped for 12 mm lug bolts.
This kit also includes front disc brake brackets, Ghia style loaded calipers, conversion wheel bearings, seals and spindle nuts. This kit cannot be used with drum brake dropped spindles.
It must be used with stock style spindles.

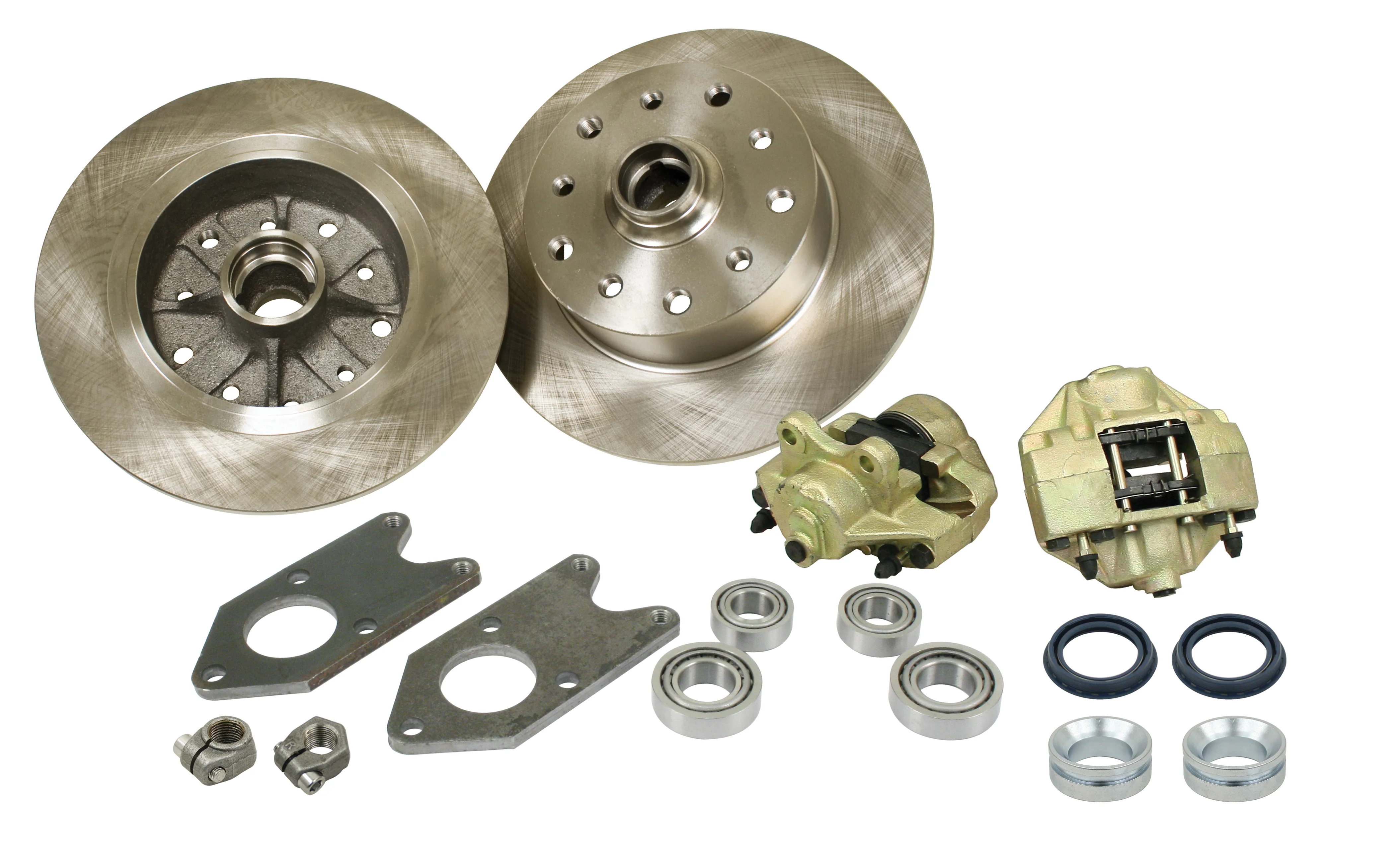

Included in this kit:
2 @ 22-2963-7 Rotors
2 @ 98-1150-B Calipers
2 @ 17-2753-0 Caliper Bracket
2 @ 17-2795-0 Outer Bearing
2 @ 17-2796-0 Inner Bearing
2 @ 98-4046-B Rotor Spacer
2 @ 111-405-641B Wheel Seal
22-2986-1 Spindle Nut
22-2986-2 Spindle Nut
This VW link pin disc brake kit will fit all early VW beetles up to 1965. This kit is a great way to upgrade stopping power, while adding a stylish wheel to your ride.
Note: These rotors use Ball Joint style grease caps as standard, part numbers 22-2943 (with speedometer hole) & 22-2944 (without speedometer hole).
22-2990-0
