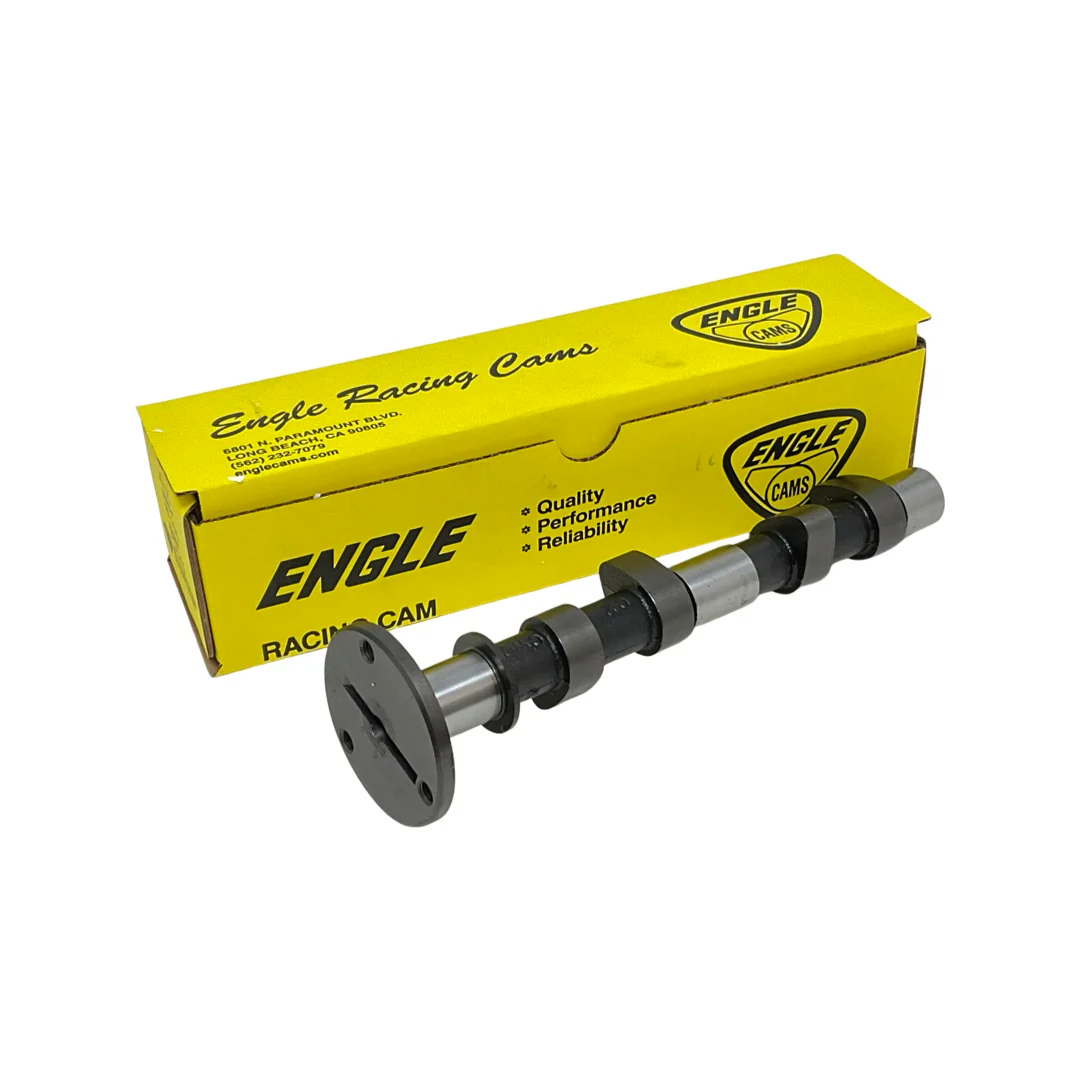

Engle W-90 Camshaft 297 Lift 265 Duration at 108 Lobe Center for Stock - W90
Description
The Engle W90 camshaft is a very mild street performance grind designed as a near-stock replacement for air-cooled VW Type 1 engines. It provides a slight increase in torque and drivability while maintaining excellent idle quality, fuel efficiency, and long-term reliability. The W90 is ideal for stock or near-stock engines and daily drivers, especially where smooth operation and low-end power are prioritized over high RPM performance. Compatible with stock 1.1 ratio rockers and factory-style components.
Specifications
- Advertised duration: ~265°
- Duration @ .050": 224°
- Cam Lift: .297"
- Lobe Center: 108°
- Recommended Rocker Ratio: 1.1:1
- Powerband: ~800–4200 RPM
Fitment
VW Type 1 air-cooled engines (1200cc–1600cc+), including Beetle, Ghia, Bus, and dune buggy builds. Best suited for stock engines or mild builds retaining stock carburetion and exhaust systems.
Similar Camshafts
- Engle W100 - Slightly more aggressive upgrade with broader powerband
- Stock VW camshaft - Factory baseline for comparison
- Kuhltek K90 - Budget alternative to W90
Tech Tips
- Supporting parts: Stock carburetor, stock or mild exhaust, stock or HD single valve springs, lifters
- Target compression ratio: 7.0:1-7.8:1
- Cam gear bolt torque: 18-25 ft-lbs
- Break-in: Use high-zinc oil, run at 2,000-2,500 RPM for 20 minutes, avoid idling during initial startup
Description
The Engle W90 camshaft is a very mild street performance grind designed as a near-stock replacement for air-cooled VW Type 1 engines. It provides a slight increase in torque and drivability while maintaining excellent idle quality, fuel efficiency, and long-term reliability. The W90 is ideal for stock or near-stock engines and daily drivers, especially where smooth operation and low-end power are prioritized over high RPM performance. Compatible with stock 1.1 ratio rockers and factory-style components.
Specifications
- Advertised duration: ~265°
- Duration @ .050": 224°
- Cam Lift: .297"
- Lobe Center: 108°
- Recommended Rocker Ratio: 1.1:1
- Powerband: ~800–4200 RPM
Fitment
VW Type 1 air-cooled engines (1200cc–1600cc+), including Beetle, Ghia, Bus, and dune buggy builds. Best suited for stock engines or mild builds retaining stock carburetion and exhaust systems.
Similar Camshafts
- Engle W100 - Slightly more aggressive upgrade with broader powerband
- Stock VW camshaft - Factory baseline for comparison
- Kuhltek K90 - Budget alternative to W90
Tech Tips
- Supporting parts: Stock carburetor, stock or mild exhaust, stock or HD single valve springs, lifters
- Target compression ratio: 7.0:1-7.8:1
- Cam gear bolt torque: 18-25 ft-lbs
- Break-in: Use high-zinc oil, run at 2,000-2,500 RPM for 20 minutes, avoid idling during initial startup
